二相電機電容正確接法電路圖(單相電機啟動電容運行電容怎么接)

2022-11-08 16:16 閱讀次數：1

單相電機啟動電容與運行電容的接法以及如何實現正反轉

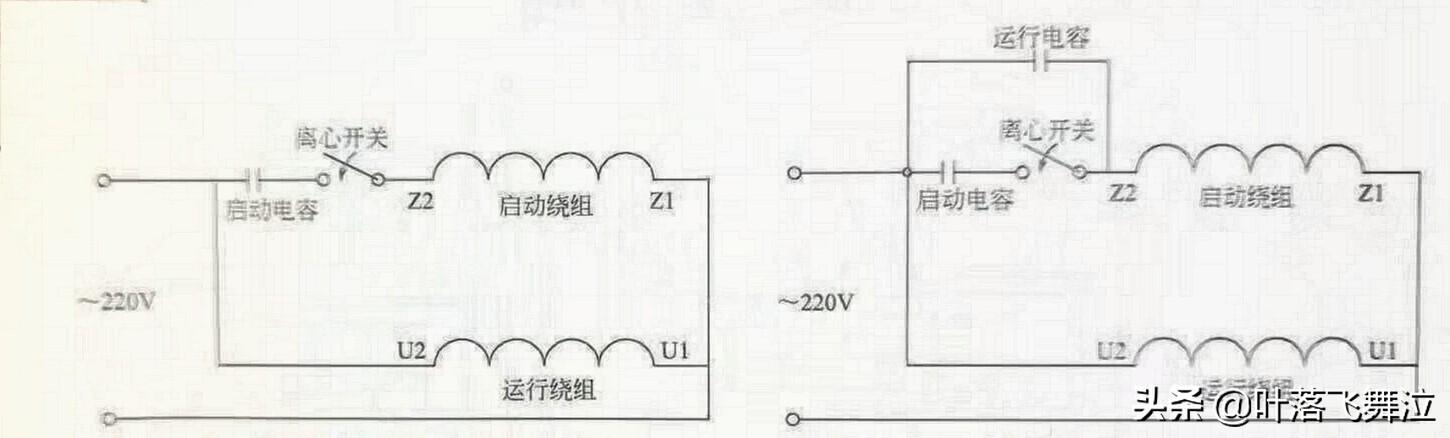

1.單相電機連接有單電容器(起動電容器)和雙電容器(起動電容器和運行電容器)

97ac6893e51c4f55a7058e17ef3a53fc~noop.image?_iz=58558&from=article.pc_detail&x-expires=1668477924&x-signature=sun4%2BIa9nws6s2Vg3lYpD72%2BmXY%3D

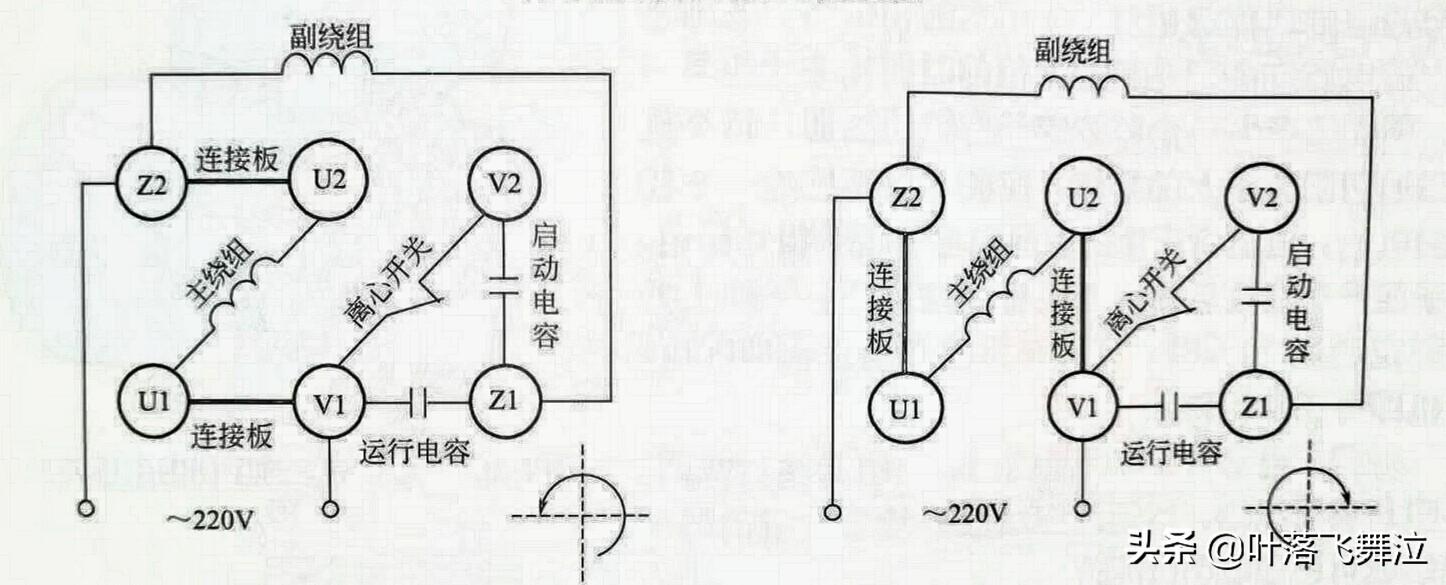

2.單相電機正負傳輸線

590963e812bd4fe98da6d2cc9fb5bc19~noop.image?_iz=58558&from=article.pc_detail&x-expires=1668477924&x-signature=5nH5Yg%2Bk5%2Fgj%2FYnXksHLHNMymO4%3D

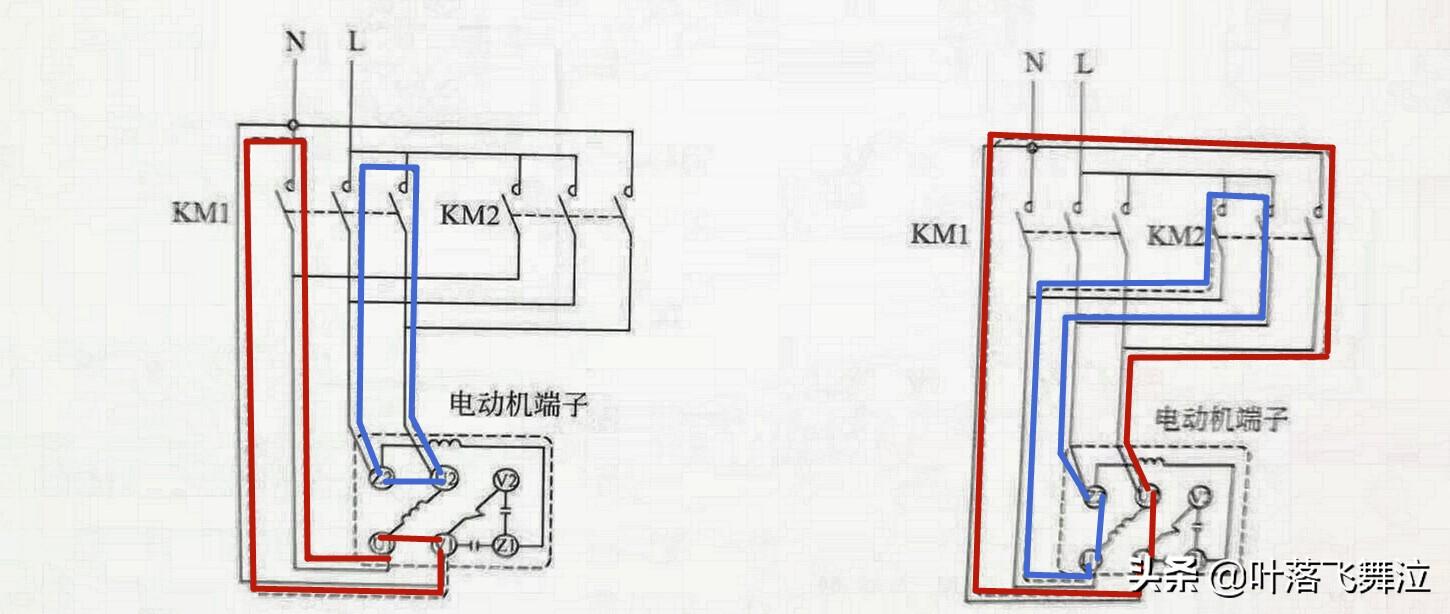

3.用接觸器控制單向電機的正反向連接線。

12fa5e46104c45f5994b9b16375a0051~noop.image?_iz=58558&from=article.pc_detail&x-expires=1668477924&x-signature=XX1vKmV3ENRMm02I4HozX%2BK8F5Y%3D
